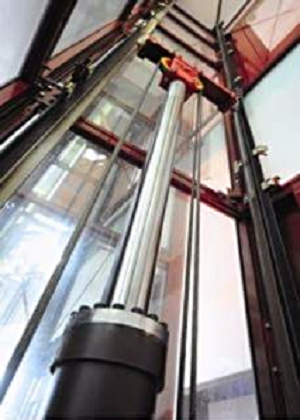

Hydraulic Lifts

  Applications

Hydraulic MRL’s are the ideal solution to low rise residential and commercial properties with capacities ranging from 544kg/8 person to 2500kg/36 person. The Hydraulic MRL is a solution for saving space as the lift does not require a plant (machine) room as all equipment is housed in a small control cabinet located anywhere up to 10m from the lift shaft.Ideally suited for low to medium rise buildings with moderate passenger flow ≥30 starts/hour without artificial cooling

  Control Cabinet Location

The drive unit and controls are provided in one self-contained cabinet*. The approximate dimensions, for an 8 persons lift, are (w) 800mm x (d)360mm x (h) 2000mm (please note that sizes will vary according to capacity). A clear space of 700mm is required in front of the cabinet. The cabinet can be located adjacent to, or remote from the lift shaft, up to a distance of 10 metres.

Control

Rated speeds are available from 0.2m/s to 1m/s, with side or center opening doors in single entry (0 degree), through car (180 degree) or adjacent (90 degree) entrance arrangements. Simplex, duplex, triplex and quadruplex groups available with down or full collective microprocessor control.Control panel (with microprocessor). Hydraulics power unit








Layout Plan
